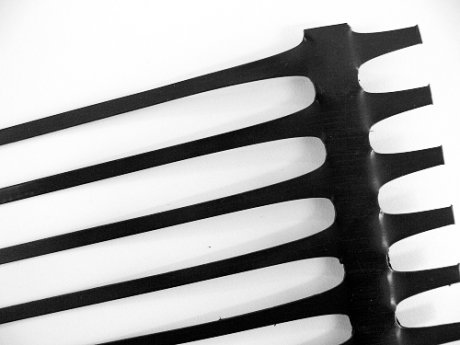

Tensar RE

Tensar RE

Uniaxial monolithic geogrid Tensar RE is made from-high density polyethylene (HDPE) and it is developed exclusively for reinforcement of ground structures. It is used to construct steep slopes, retaining walls, bridge abutments, further to repair failed slopes and to construct geocell structures. Uniaxial geogrid's feature is high strength at low strain to the length of the roll.

  • exceptional chemical resistance
  • 120 year certified design life
  • durability and resistance to UV radiation
  • 100% strength of site joints and connections
  • designed to interlock with soil
  • full technical support

Details

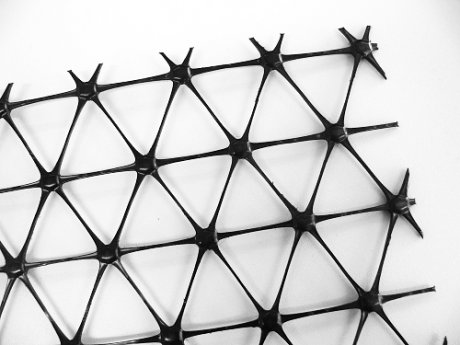

Tensar TriAx

Tensar TriAx

Triaxial monolithic geogrid Tensar TriAx is made from 100% polyproplylene (PP) using unique technology. It is used for ground stabilization of unbound layers of roads and other trafficked areas and for stabilization of construction layers of railway structures. It is also available as a composite variant with a separative non-woven geotextile G, which is attached to the geogrid at each junction.

  • designed and manufactured exclusively for mechanical ground stabilization
  • the most efficient type of geogrids for mechanical stabilization
  • multidirectional properties - high tensile stiffness  through 360°
  • strong and sharp rib edges - effective confinement of the aggregate particles

Details

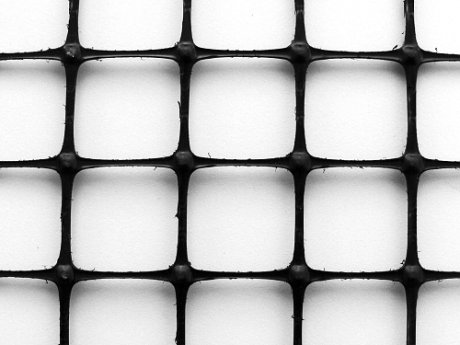

Tensar SS

Tensar SS

Biaxial monolithic geogrid Tensar SS is made from 100% polypropylene (PP) using unique technology. It is used for reinforcement of the unbound layers of roads and trafficked areas  and to stabilize the construction layers of railway structures. It is also available as a composite variant with separative non-woven polypropylene geotextile G which is attached to the geogrid at each junction.

  • designed and manufactured exclusively  for ground stabilization
  • more efficient than woven and bonded geogrids for mechanical stabilization
  • strong junctions and sharp rib edges - effective confinement of the aggregate
    particles

Details

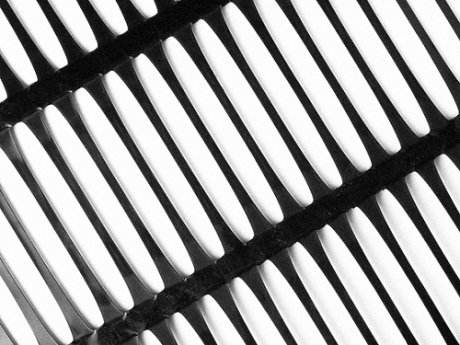

Eurogrid U

Eurogrid U

Uniaxial monolithic geogrid Eurogrid U is made from high-density polyethylene (HDPE) and it is developed exclusively for reinforcement of ground structures. It is used to construct steep slopes, retaining walls, bridge abutments, also to repair failed slopes and to construct geocell structures. Uniaxial geogrid's feature is high strength at low strain to the length of the roll.

  • exceptional chemical resistance
  • durability and resistance to UV radiation
  • 100% strength of site joints and connections
  • designed to interlock with soil

Details

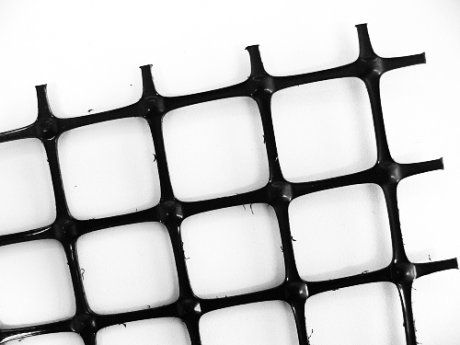

Eurogrid B

Eurogrid B

Biaxial monolithic geogrid Eugrid B is made from 100% polypropylene (PP). It is used for reinforcement of the unbound layers of roads and other trafficked areas and to stabilize the construction layers of railway structures.

  • designed and manufactured exclusively  for ground stabilization
  • more efficient than woven and bonded geogrids for mechanical stabilization
  • strong junctions and sharp rib edges - effective confinement of the aggregate particles

Details
